Model NO1-P
NO1-P
Термостил ДООЕЛ 2314, Блатец, Виница Р. Македонија тел. +389 (0)71 331 066

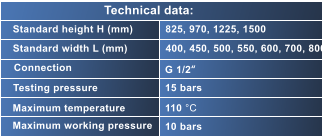

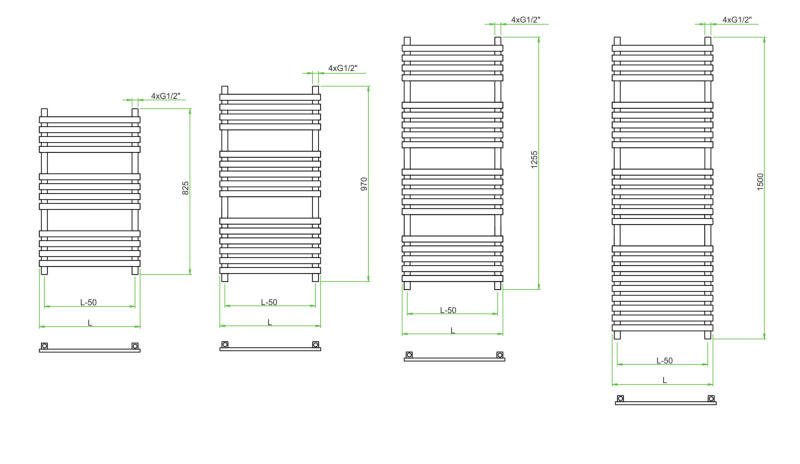

Tabular Radiators Tabular Radiators Standard height H (mm) Standard width L (mm) Connection Testing pressure Maximum temperature Maximum working pressure 825, 970, 1225, 1500 400, 450, 500, 550, 600, 700, 800 G 1/2“ 15 bars 110 °C 10 bars Technical data:
- Steel qadrant profile 25*25*2 mm - Steel oval profile 30*15*1,2 mm
Power (W) 90/70/20
The Radiators TERMOSTIL come packed in a cardboard box together with all the required Accessory for instalment - 3 or 4 plastic console, wall - rivets, screws, mechanical valve, stops and manual for instalment. The radiators are painted with a standard RAL 9016 (white) color.
